Power/Indicator Guard

Here are a few pictures of the PiG when it was first put into production.

Click HERE to return to the NoGaPiG Kit Information Page..!

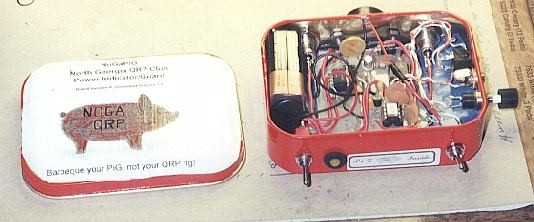

AE4NY's PiG with decoupage lid

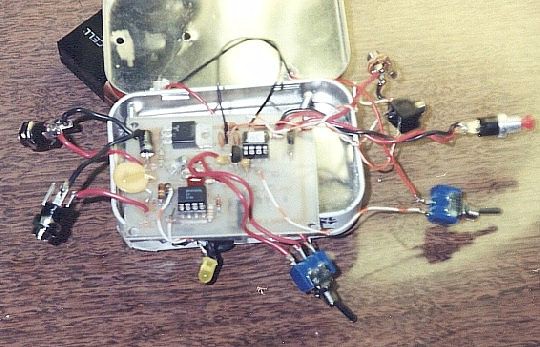

AD4S's 1st PiG with PIC keyer and all controls hanging out.  Will run on 9V battery or 12V monitored supply.

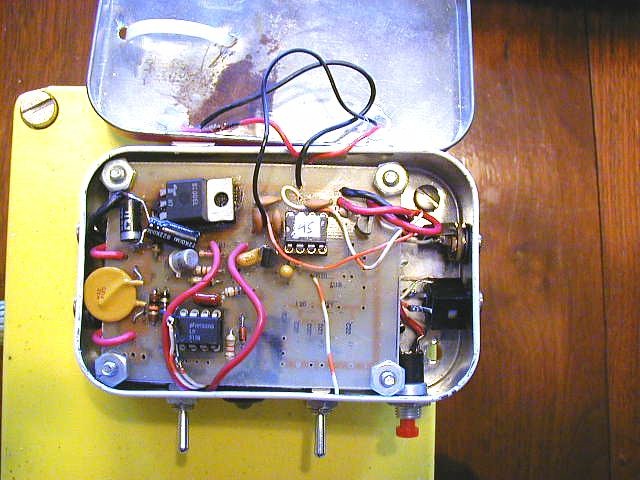

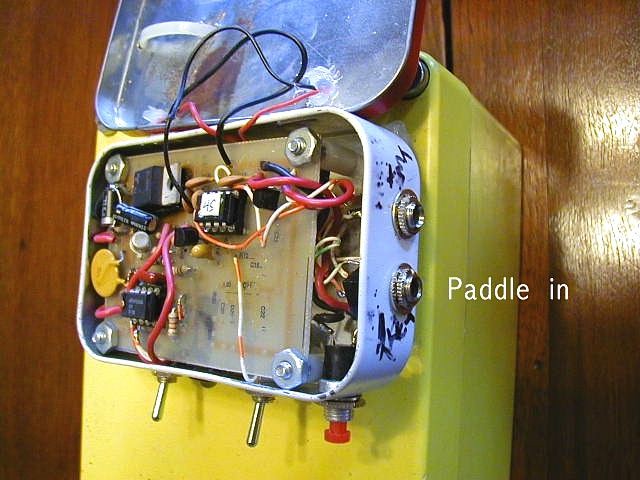

Inside a PiG.  The rust on the lid was from a shorted SCR.

Keyer in/out

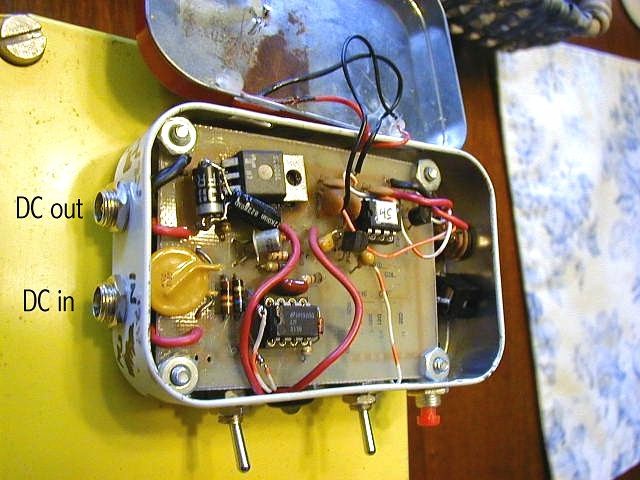

DC input/output

full "frontal"

from another angle.

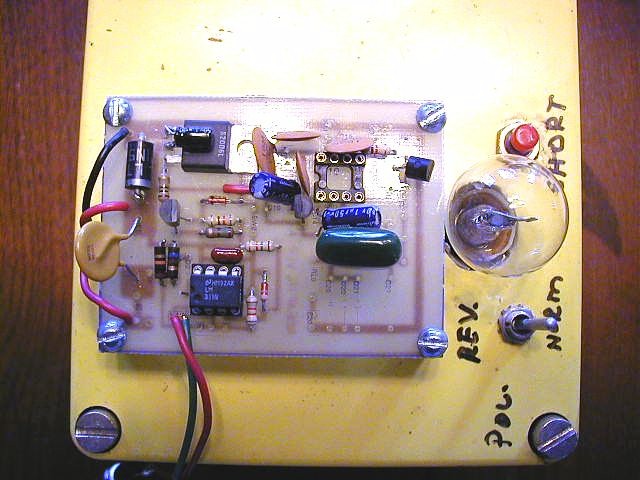

On the demonstrator.

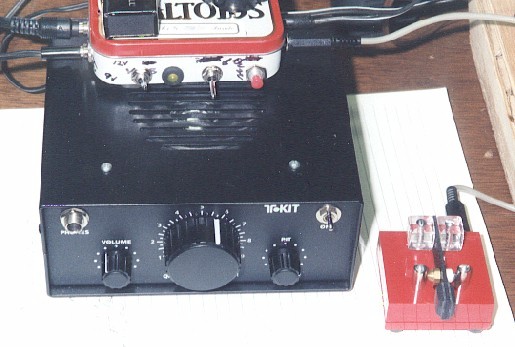

In use with a TenTec.

AE4GX's PiG showing low voltage test switch.

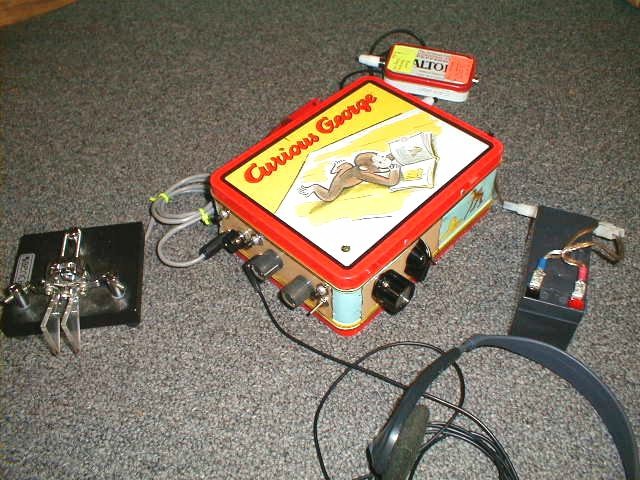

In use with AE4GX's Georgia Sierra.

A note from one JA to another recommending the PiG.
